NEO FP MBR water treatment unit (Panel tank type)

  • TOP
  • PRODUCTS
  • NEO FP MBR water treatment unit (Panel tank type)

NEO FP MBR water treatment unit (Panel tank type)

Water treatment tank that can be designed for various installation conditions.

  • Advantages

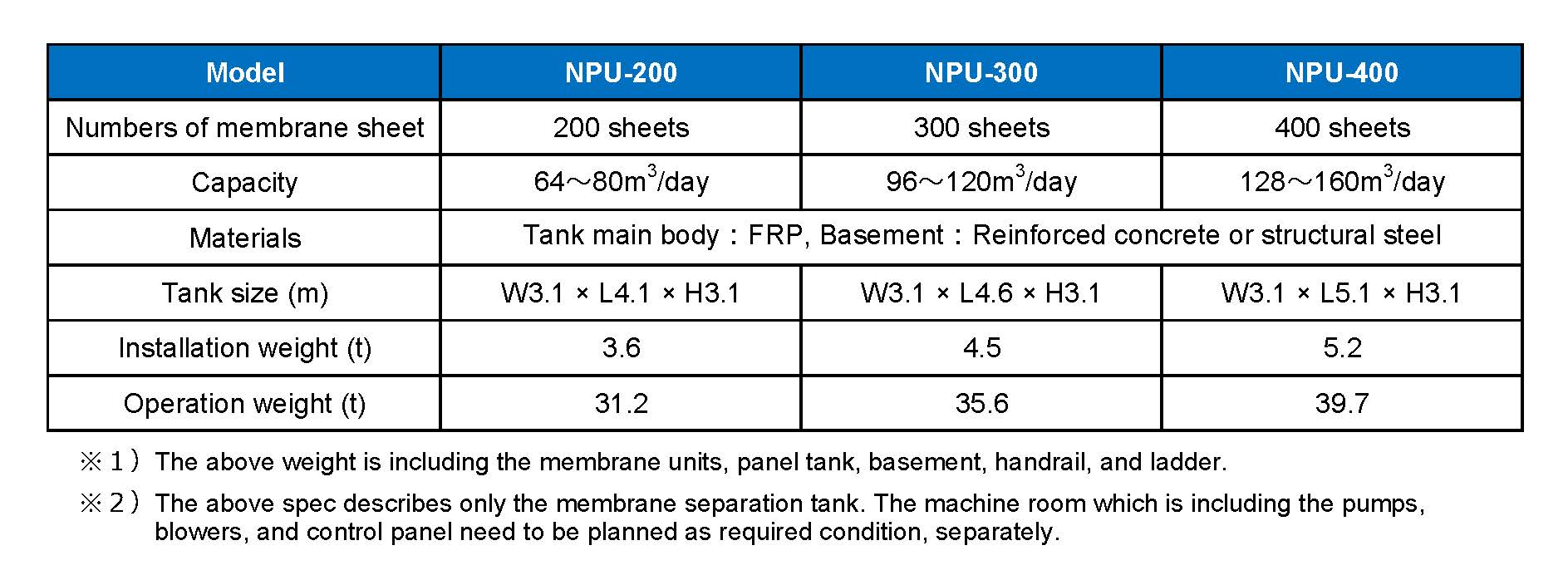

  • Specifications
  • Reference drawing

  • 1. Adjustable for various designs

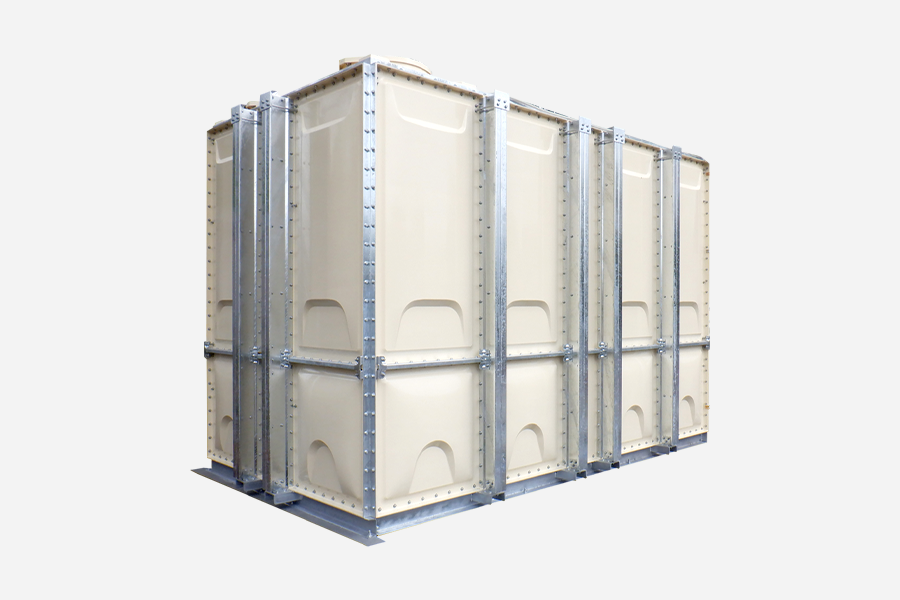

    • Panel-type tank enables you to flexibly select the capacity and shape of tank.

  • 2. Easy transporting and assembling

    • Even though narrow space, it is possible to carry in the parts and install easily.

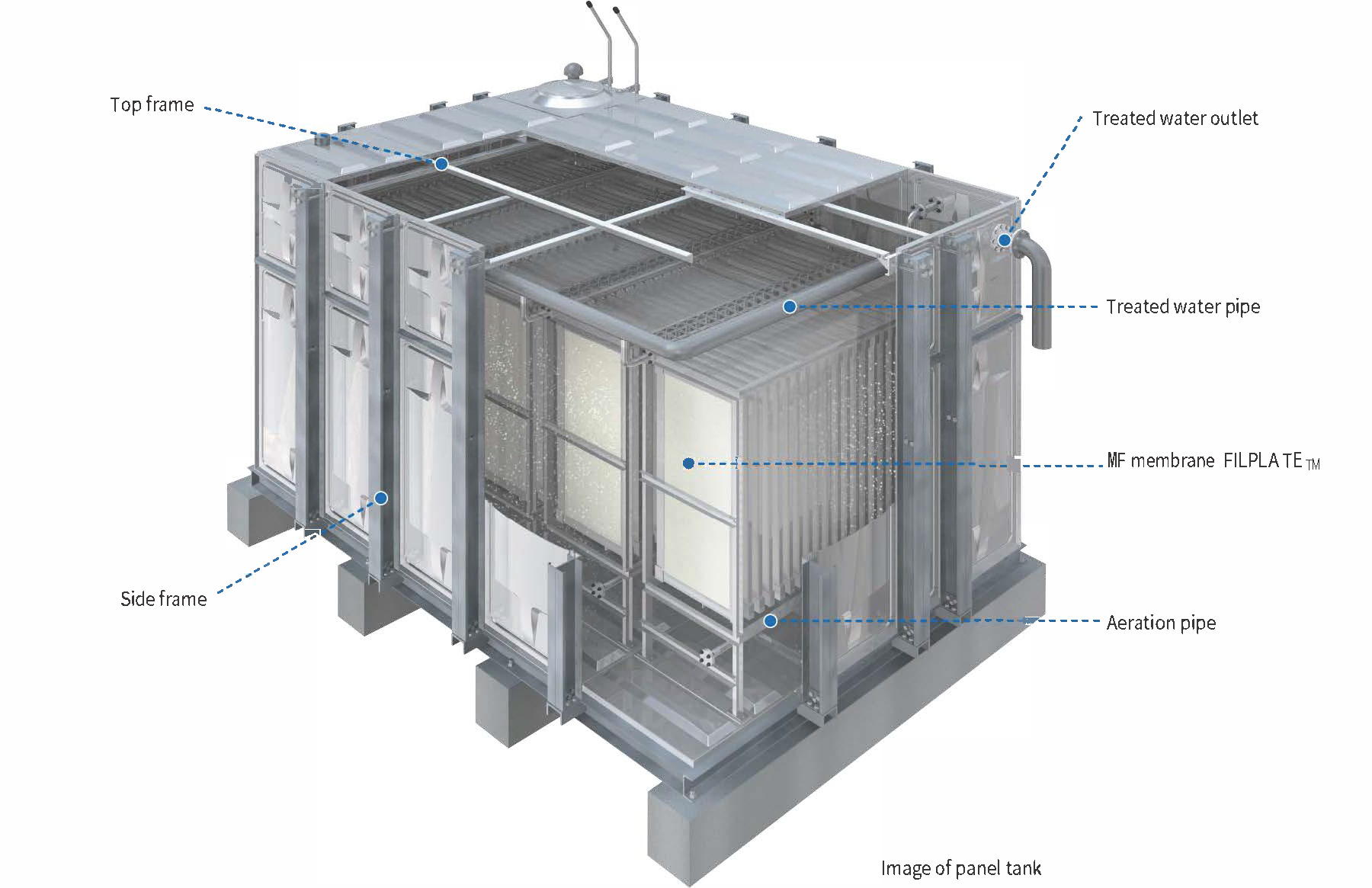

  • 3. Built-in membrane unit

    • Inside of the panel tank, membrane unit can be installed with the special support frame.

  • 4. Easy maintenance and cleaning

    • Maintenance walkways and openings can be installed on the top of panel tank for the regular checking and cleaning works.

    説明図
  • 製品の説明図
  • 説明図
  • 説明図

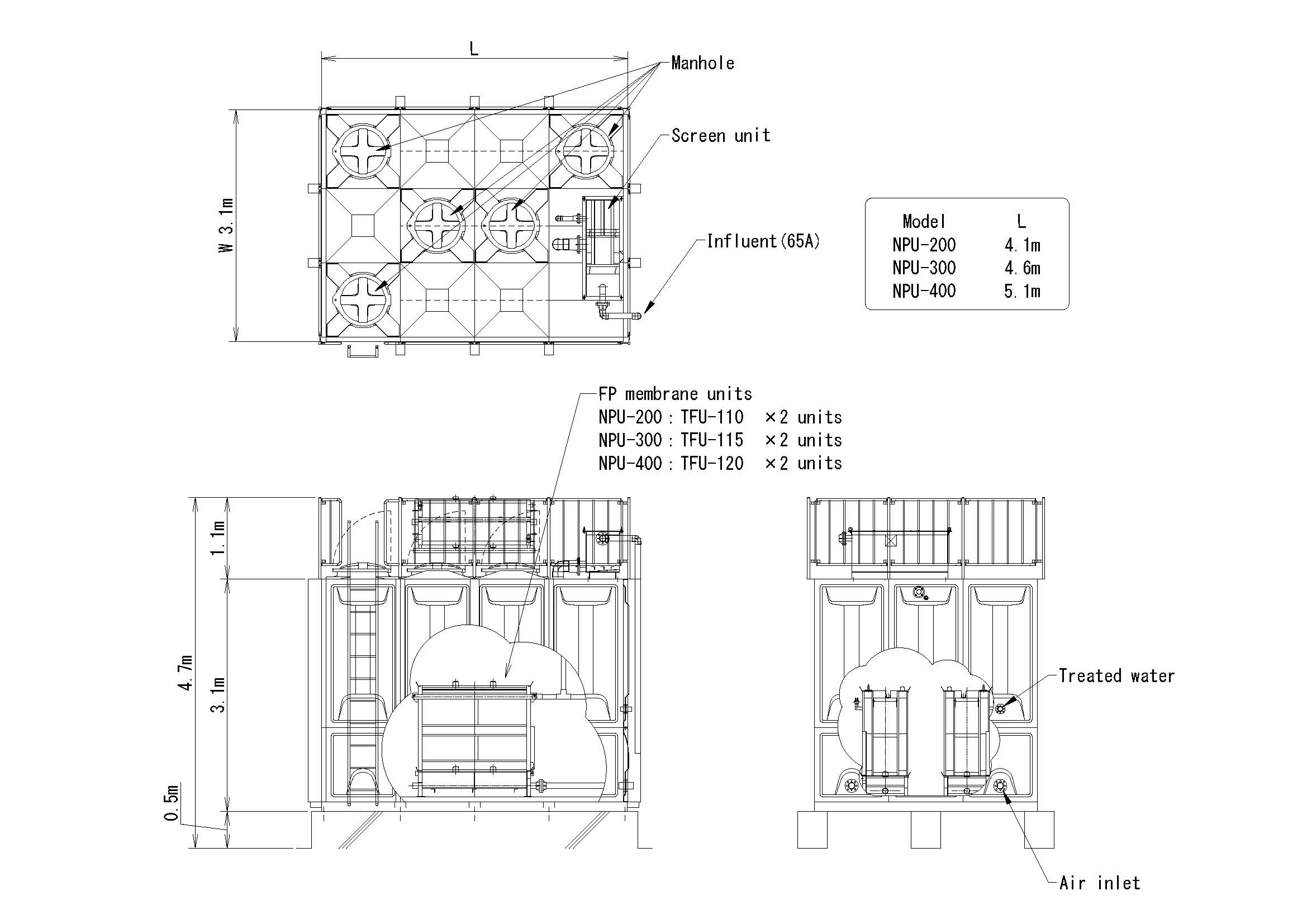

    • The above drawings describe only the membrane separation tank. The machine room which is including the pumps, blowers, and control panel need to be planned as required condition, separately.
